DRAPER Engine Crane 1 Tonne

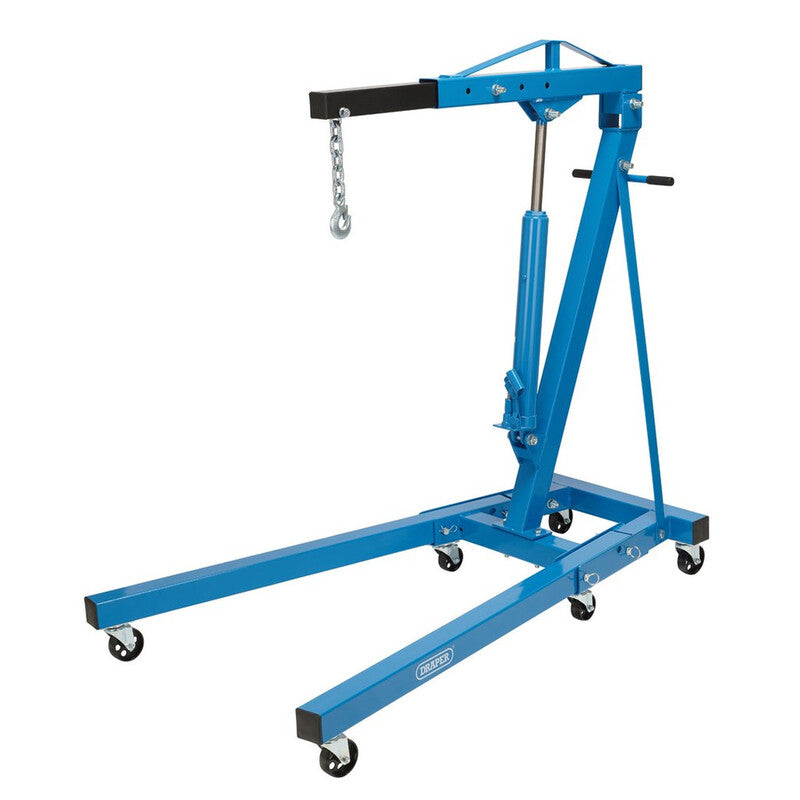

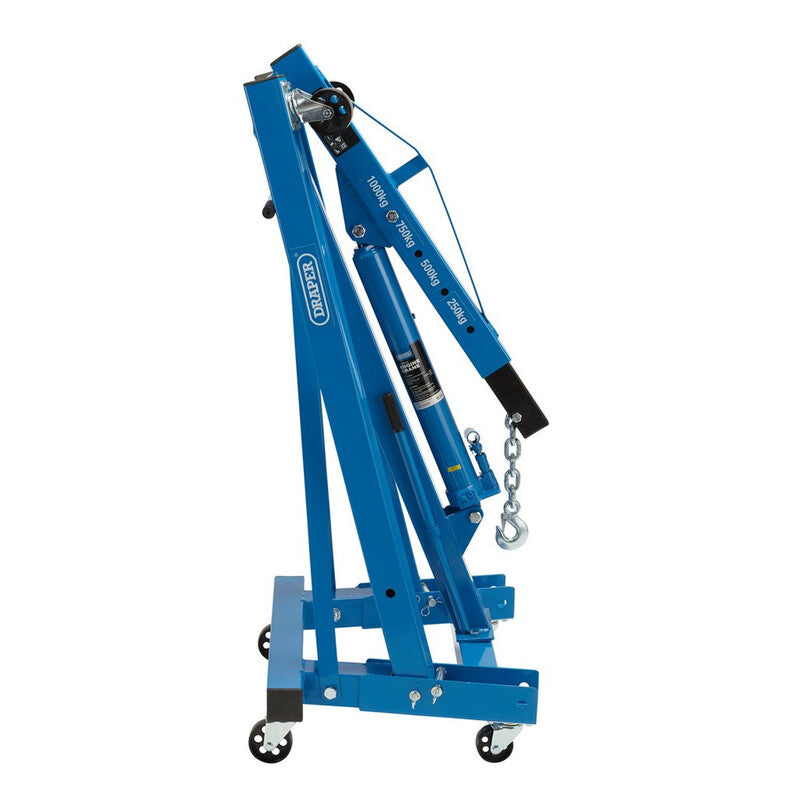

This robust engine crane has a maximum capacity of 1 Tonne. The single piston hydraulic pump ensures rapid lifting of an engine out of its bay with little effort. There are four pre-set jib positions, with a maximum capacity of 250kg when the jib is fully extended. The outrigger legs can be folded to optimise storage workshop space or for easy transportation. There are six robust castor wheels to allow safe and easy mobility. For safety they are twin overload valves to prevent exceeding capacity. This engine crane is compatible with a wide range of load slings and levellers.

• Three pre-set jib positions for lifting
• Single piston hydraulic pump for rapid lifting

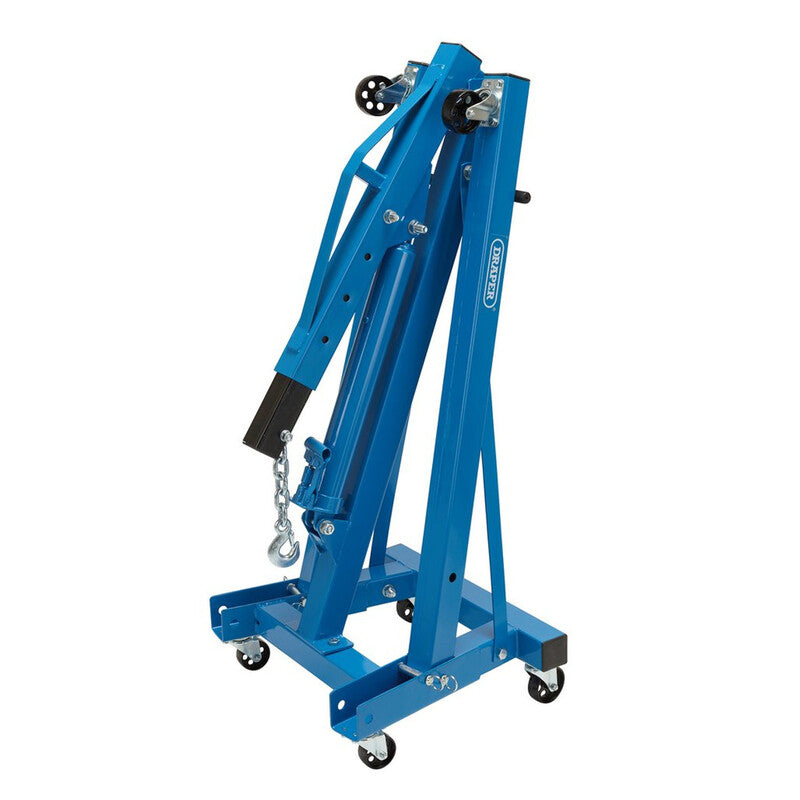

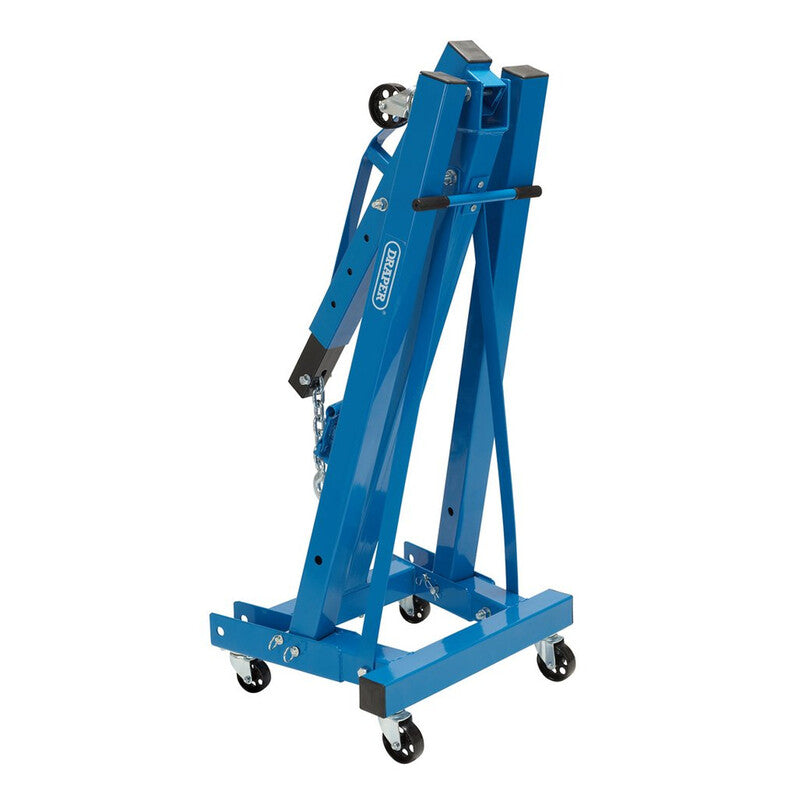

• Folding design optimises storage space
• Six robust castor wheels for easy mobility
• Fitted with twin safety overload valves
• Compatible with a wide range of load slings and levellers
• Manufactured to EN1494 Specification

Informations:

• Capacity: 1 Tonne
• Capacity position 1: 1,000 kg
• Maximum jib length position 1: 910 mm
• Maximum jib height position 1: 2,010 mm
• Capacity Position 2: 750 kg
• Maximum jib length position 2: 1,000 mm
• Maximum jib height Position 2: 1,930 mm
• Capacity Position 3: 500 kg
• Maximum jib length position 3: 1,090 mm
• Maximum jib height position 3: 1,850 mm
• Capacity position 4: 250 kg
• Maximum jib length position 4: 1,190 mm
• Maximum jib height position 4: 1,780 mm
• Frame height: 1,420 mm
• Frame length: 750 mm
• Frame width: 70 mm
• Folded dimensions: H 1,520 x L 600 x W 1,420 mm
• Weight: 66.90 kg
