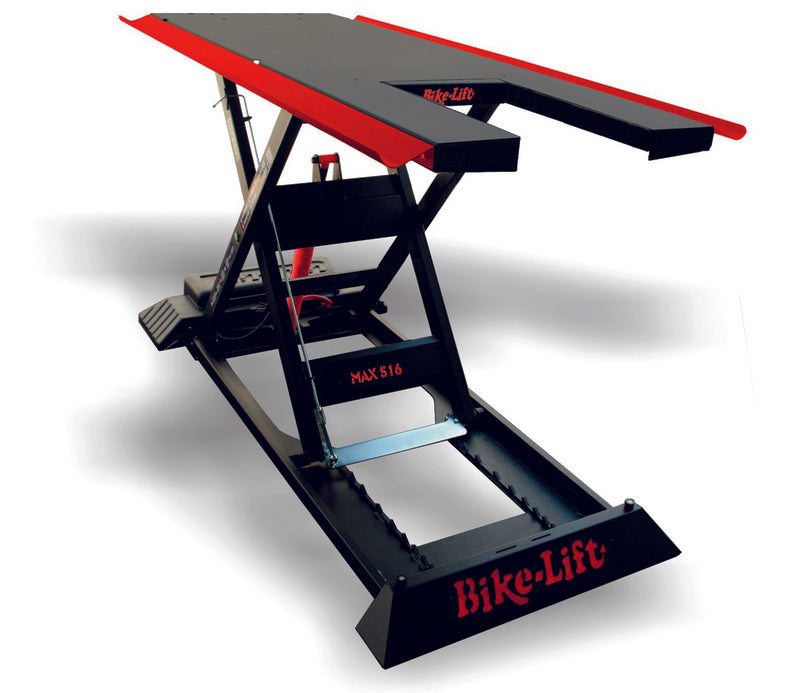

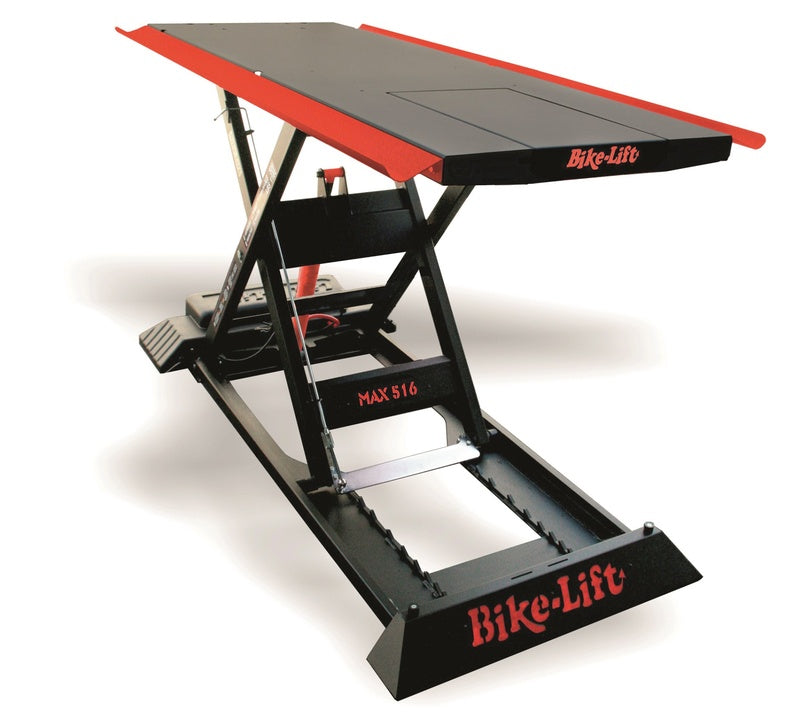

BIKE LIFT Max 516 Gate Lift Table Orange KTM - MG-516-003

ATTENTION: ONLY AVAILABLE ON FIRM ORDER - Quote is necessary at time of purchase for paint pricing and delay.

In Color, the jack, side gutters and access ramp.

Designed for all types of motorcycles, the 516 MAX Gate offers many possibilities. The rear sliding staircase gate provides easy access to the wheel for easy operation. Functional, reliable and easy-to-use, it's the lift tables reference.

Technical details:

• Mechanism: Electro-hydraulic (By remote control)
• Input current: 230V / 50Hz
• Maximum capacity: 500Kg
• Maximum height: 130cm
• Minimum height: 19cm
• Safety locking: 8

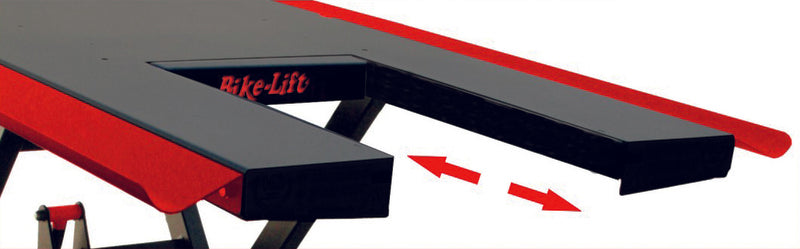

• Rear sliding trap gate
• Tabletop dimensions: 220 x 75cm
• Gutters dimensions: 220 x 8.5cm
• Run-up ramp dimensions: 82 x 51cm
• Rear sliding gate dimensions: 60 x 36cm
• Overall dimensions: 230 x 92cm
• Weight: 250Kg

Standard equipment:

• Central run-up disaster
• Side gutters set
• Front safety bar
• Delivered in woodbox
