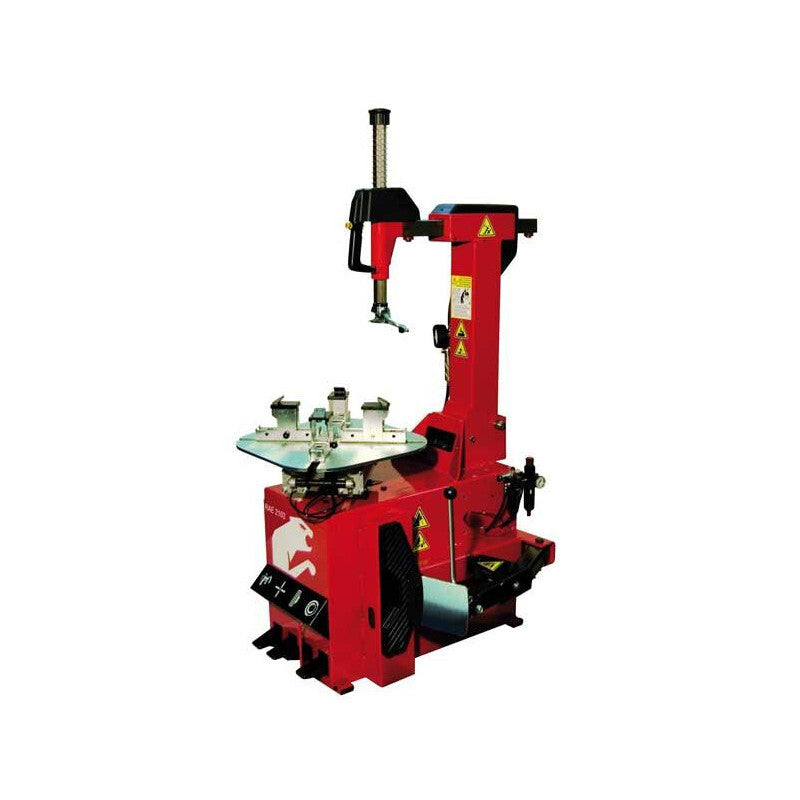

FASEP Automatic Tire Changer - 3 x 230V

Tire changer equipped with automatic arm for motorcycles. Rigid construction for precise movements and avoiding damage to the rims. Designed for intensive use, it is suitable for tire workshops and other quick service.

Technical details:

• Input current: 230 V single phase or 380V tri-phased / 50Hz
• Rotation speed: 6 rpm
• Capacity (External clamping): Rim 5" to 23"
• Maximum rim width: 317mm (12.5")
• Bead breaker power: 2800Kg
• Overall dimensions (L xpxh): 990 x 1505 (pivot motion of the arm included) x 1750mm
• Vertical Arm : 120mm X 120mm
• Horizontal Arm : 120mm X 90mm
• Weight: 150Kg

Standard equipment:

• Lubricator & pressure regulator
• Pressure gauge
• Tire lever with plastic protection
• Plastic protection set (13 pieces)
• Brush grease

Compatible accessories:

• Quick adapter system and all mounting head of the range Bihr
