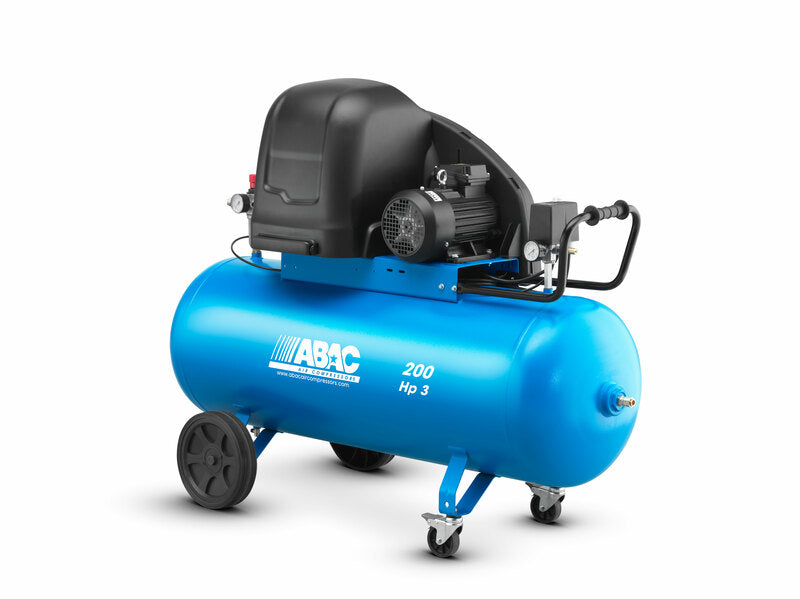

SILENT COMPRESSOR 200L 3CV / 200L

Piston compressor with belt drive and sound insulation.

This compressor has a quieter operation and is easy to handle. The sound is stopped by the soundproof hood, for a comfortable and optimally safe working environment for the mechanic.

Technical specifications:

• Single stage, cast iron cylinder, belt drive
• Gamma Silent: compressors with a sound-insulating hood
• Significantly reduces noise pollution
• Flow rate: 23.6m3/h
• Air pressure: 10bars
• Engine power: 3CV / 2.2KW
• Power supply: 230V single phase / 50Hz
• Reservoir capacity: 200L
• Speed: 1050 rpm
• Noise level: 71dB(A)
• Dimensions L x W x H (mm): 1500 x 470 x 1190
• Weight: 94Kg

NB:

For long-term protection of your pneumatic installation, it is strongly recommended to use an air handling system ref. 1125388 and an automatic draining device ref. 1125389.
