BIHR

CONNECTOR SET FRKW 5-POL 6-POL-5 COMPLETE SETS TYPE 090 FRKW FW

CONNECTOR SET FRKW 5-POL 6-POL-5 COMPLETE SETS TYPE 090 FRKW FW

1079709

€ 119,79
€ 119,79
Sale Sold out
Taxes included. Shipping calculated at checkout.

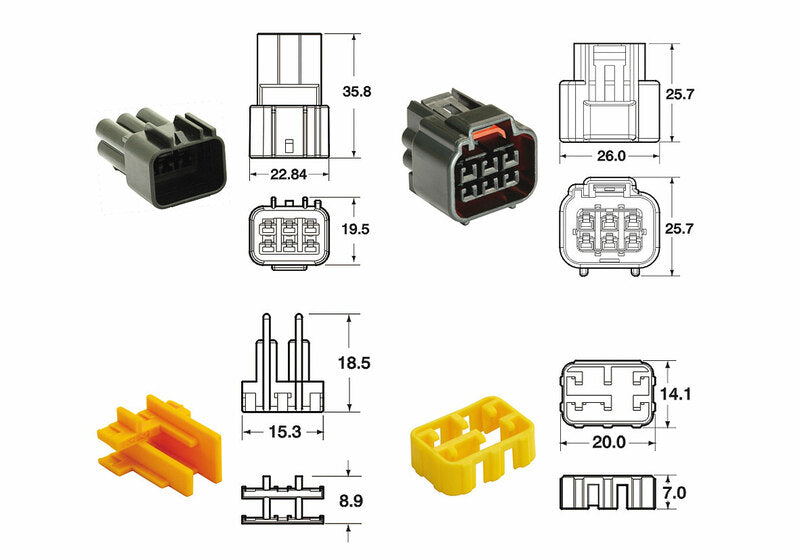

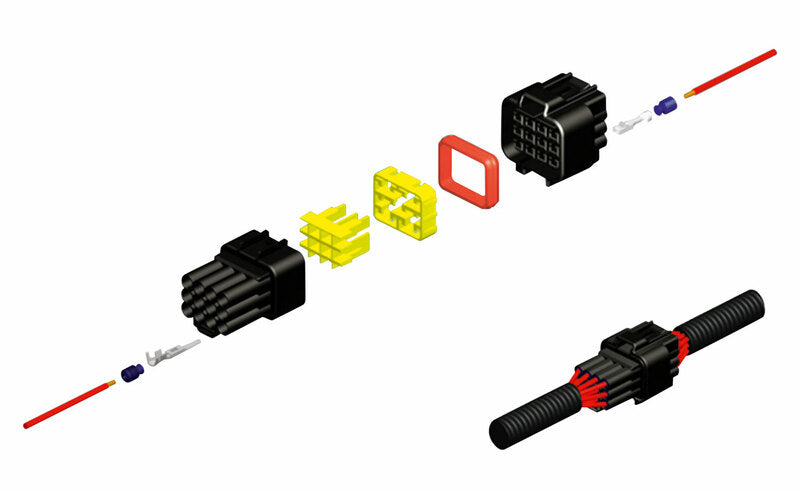

Set of 5 complete plug connections (housings, locks, seals,
cable lugs), waterproof type original manufacturer.
Technical specifications:

  • Male & female cable lug, tin-plated brass.
  • Silicone seals.
  • Operating temperature: -40°C / +120°C.
  • Voltage drop: 5mV/A.
  • Insulation resistance: 100MΩ.
  • Dielectric resistance: 1000V.
  • Wire diameter: 0.5mm² / 0.85mm².
  • Max. electric current: 10A.
  • Type 090 FRKW FW
