BIHR

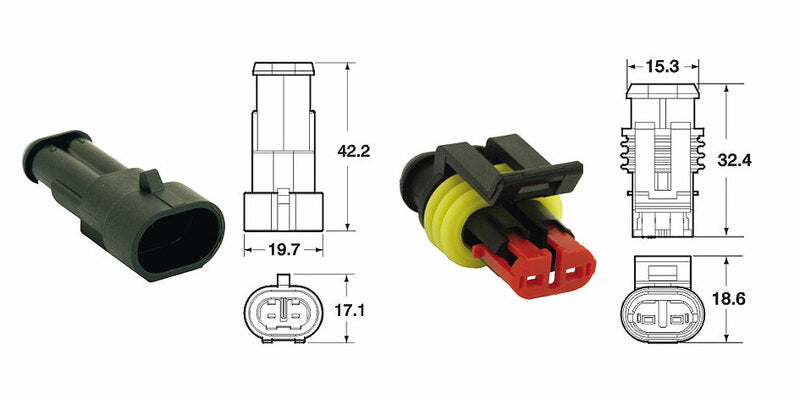

CONNECTOR SET 2 POLES 2 POLES-5 COMPLETE SETS TYPE 060 AM

CONNECTOR SET 2 POLES 2 POLES-5 COMPLETE SETS TYPE 060 AM

1079715

€ 48,40
€ 48,40
Sale Sold out
Taxes included. Shipping calculated at checkout.

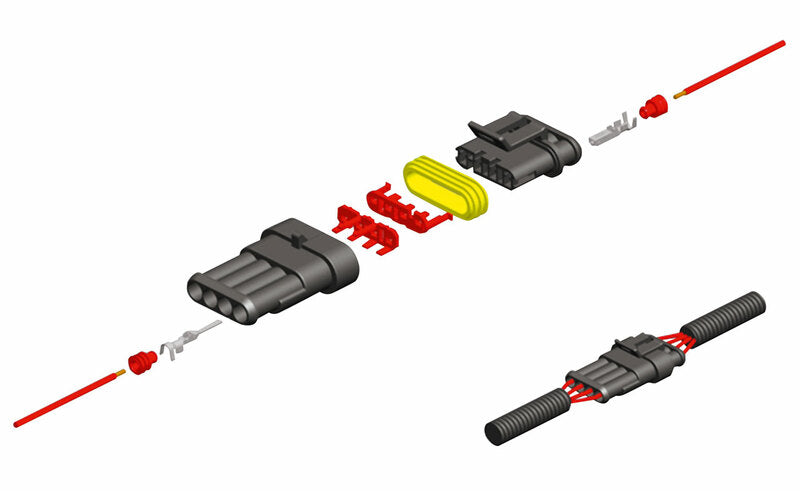

Set of 5 complete plug connections (housings, locks, seals,
cable lugs), general waterproof type.
Technical specifications:

  • Cable lug male brass & female bronze phosphorescent tinned.
  • Silicone seals.
  • Operating temperature: -40°C / +125°C.
  • Voltage drop: 3mV/A.
  • Insulation resistance: 100MΩ.
  • Dielectric resistance: 1500V.
  • Wire diameter: 0.85mm² / 1.25mm².
    Max. electric current: 10A.
  • Type 060 AM
